In the past, PCB depaneling was often considered an independent manufacturing process.
After the cutting process was completed, operators manually removed the PCBs, inspected them, arranged them into trays, and transferred them to the next production stage.
This method could meet production requirements when manufacturing volumes were relatively low.
However, with the rapid growth of automotive electronics, renewable energy systems, communication devices, and smart products, PCBA manufacturing is moving toward:
Higher efficiency, better consistency, reduced labor dependency, and smarter automation.
Traditional manual handling and tray loading after depaneling have gradually become key factors limiting production efficiency.
As a result, more and more electronics manufacturers are adopting:
Inline PCB Depaneling & Tray Loading Systems.
By using automation technology, the entire process can be completed through:

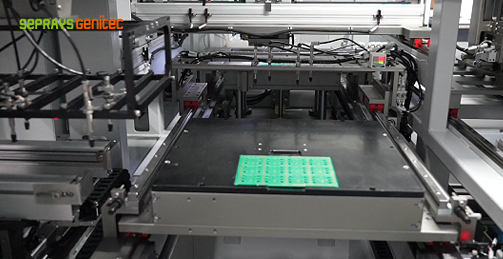

PCB Loading → Automatic Depaneling → Board Transfer → Automatic Tray Loading → Next Production Process
This reduces manual intervention and improves production continuity.
According to the World Robotics report published by the International Federation of Robotics (IFR), manufacturing industries worldwide continue to increase automation adoption, with electronics manufacturing being one of the major fields driving industrial automation development.
Meanwhile, the electronics manufacturing industry continues to expand, especially in areas such as automotive electronics, renewable energy electronics, and smart devices.
For PCB manufacturers, automation is no longer only about increasing production speed.
More importantly, it focuses on:
Reducing dependence on manual labor
Improving manufacturing stability
Maintaining product consistency
As a critical process in PCBA manufacturing, PCB depaneling is also evolving from standalone equipment toward integrated automated production solutions.
An Inline PCB Depaneling & Tray Loading System is an integrated automation solution that combines PCB depaneling equipment with automatic material handling and tray loading functions.
Compared with traditional depaneling processes, the biggest difference is:
After depaneling, operators no longer need to manually remove and organize the PCBs.
The system automatically transfers finished boards and places them into trays according to predefined settings.
The complete process includes:
Reduced manual operations
Lower risk of product handling damage
Improved production efficiency
Easier integration with smart manufacturing systems
For electronics manufacturers requiring continuous production, inline depaneling solutions significantly improve overall automation capability.
In traditional production workflows:

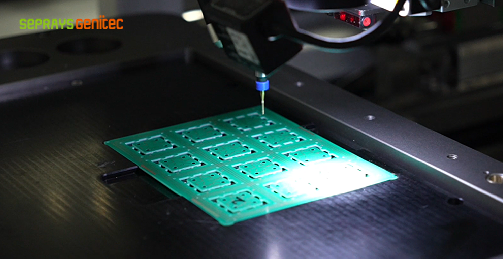

The depaneling machine performs the cutting process,
while operators handle the following steps.
This creates waiting time between processes.
An inline depaneling and tray loading system connects these two operations together.
After PCB separation,
the products are automatically transferred into the tray loading process.
This reduces manual transfer and improves overall production efficiency.
In high-volume production, tray loading is not simply a placement task.
When performed manually, it may result in:
Different product orientations
Inconsistent placement positions
Difficult batch management

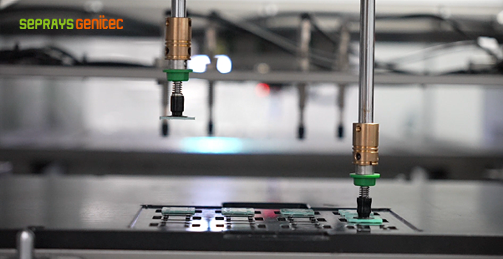

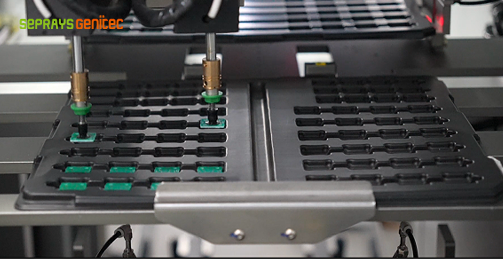

An automatic tray loading system places products according to programmed settings and maintains standardized output.
This is especially valuable for applications requiring high production consistency, such as:
Automotive electronics
Communication modules
Industrial control boards
Modern electronics factories are increasingly focused on equipment connectivity.
Improving the efficiency of a single machine is no longer the only goal.
Manufacturers are looking for solutions where:
Equipment can connect with upstream and downstream processes
Production data can be managed
Material flow can operate automatically
The Genitec ZM400ATP Inline PCB Depaneling & Tray Loading System is designed with these automation requirements in mind.
It can be configured according to customer production planning and connected with downstream automation equipment.
As manufacturing labor costs continue to increase, companies are paying more attention to one key question:
How can repetitive manual operations be reduced?
PCB removal, transfer, and tray loading after depaneling are repetitive tasks.
By replacing these operations with automation equipment, manufacturers can:
Reduce manpower requirements
Improve production stability
Minimize human operation variations

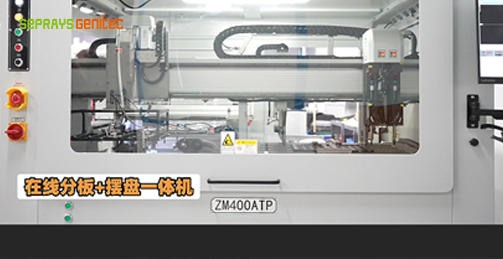

The Genitec ZM400ATP is an inline PCB depaneling and tray loading solution developed for modern PCBA automation requirements.
The system integrates:
PCB Depaneling Process
Automatic Board Handling System
Tray Loading System
into one automated platform.
It creates a continuous connection from PCB processing to finished product output.
Compared with traditional depaneling equipment, the ZM400ATP focuses on:
Continuous production capability
Equipment integration flexibility
Future automation expansion requirements
Inline PCB depaneling and tray loading systems are widely used in:
Applications:
Vehicle control modules, electronic components, and automotive PCB assemblies.
Key requirements:
High-volume production and excellent manufacturing stability.
Applications:
Smart devices, communication products, and electronic assemblies.
Key requirements:
Fast production cycles and high manufacturing efficiency.
Applications:
Power modules, control boards, and industrial electronic products.
Key requirements:
Long production cycles and high reliability.
Since its establishment in 1993, Genitec has been dedicated to the development and manufacturing of PCB/FPC depaneling equipment.
After more than 30 years of industry experience, Genitec provides:
PCB Router Depaneling Machines
Laser Depaneling Machines
V-Cut Depaneling Machines
Saw Depaneling Machines
Inline PCB Depaneling Automation Systems
Complete PCB Automation Solutions
From standalone machines to complete production line automation, Genitec continuously develops solutions based on real manufacturing requirements.
Today, Genitec products are widely used in:
Automotive electronics
Communication devices
Renewable energy
Consumer electronics
Industrial electronics
The future competition in PCB manufacturing is not only about processing accuracy.
It is also about automation capability and manufacturing efficiency.
An Inline PCB Depaneling & Tray Loading System does more than simply solve the question of:
“How to separate PCBs?”
More importantly, it helps manufacturers achieve:
Fewer manual operations
Higher production efficiency
Better integration into smart manufacturing systems
For companies looking to improve PCBA automation, inline PCB depaneling and tray loading solutions are becoming an increasingly important choice.
An Inline PCB Depaneling & Tray Loading System is an automated solution integrating PCB depaneling, automatic board handling, and tray loading, enabling continuous production from PCB separation to tray output.
A standard inline PCB depaneling machine mainly performs the cutting process, while an inline depaneling and tray loading system additionally integrates automatic handling and tray loading functions to reduce manual operations and improve production efficiency.
They are mainly used for high-volume PCBA production, including automotive electronics, communication modules, renewable energy electronics, consumer electronics, and industrial control products.
Yes. Depending on production requirements, inline depaneling systems can be connected with loading systems, material handling systems, and smart manufacturing equipment to achieve automated production.
The Genitec ZM400ATP is suitable for PCBA manufacturers that require higher production efficiency, better product consistency, and advanced automation capabilities, especially companies involved in high-volume manufacturing and smart factory development.
