Applicable to automotive electronics, medical, military and other fields;
Solve the problem of rapid line change and production conversion, and save the cost of tooling and fixture production.
No jig cutting.
The material can be placed in a row at 0-180 degrees and connected to the back-end equipment.
Track feeding and discharging can be selected from belts, tracks, and jig discharging.
High-speed ESD automatic tool change spindle is used to actively discharge the static electricity generated during the board separation process, reducing the damage caused by static electricity to PCBA.
It has milling cutter life management, maintenance warning, and spindle speed setting management.
6HP high-suction dust collector, equipped with negative pressure detection reminder to clean the filter bag.
Windows 10 operating system. Software automatic development, continuous function upgrade.
No need for custom fixtures, can directly perform board separation
The output can be set to rotate 0-180 degrees for placing the entire row of output
Equipped with high-speed CCD vision automatic calibration system.
Can simulate cutting paths to assist in program programming, ensuring cutting path accuracy.
Combined with full-board scanning and offline programming functions, it enhances path editing efficiency.
Cutting programs can be edited offline and directly imported into the machine, improving utilization rate.
Simpler, more user-friendly, with automatic recognition of cutting paths.
After full-board PCB scanning, editing allows for quick modifications to cutting paths, improving programming efficiency.
Cutting line colors are selectable, making it easier to identify different color PCBs.
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Item | GAM380AT |
Valid cutting size | 500*450mm（Customizable worktable:：850*750mm） |
Loading method | Track conveyor |
Unloading method | Belt conveyor or track conveyor (option) |
Transfer method | Rotatable fixture for clamping |
Flow direction | Left to right（Standard）right to left（option） |
Cutting function | Tweening to straight line,L shape,U shape,Circle,Arc |
Transport height | 900±25mm |
Machine repeat precision | ±0.01mm |
Cutting precision | ≦±0.1mm |
Cutting speed | 1-100mm/s |
Spindle speed | MAX.80000rpm |
Spindle cutter replacement method | Auto tool change |
Broken tool detection | available |
Operating system | Windows10 |
Program teaching method | Intuitive teaching by CCD color image input |
Control method | Precision multi-axis control system |
XYZ axis driving mode | AC Servo motor |
Size of router vit | ∮0.8~3.0mm |
Voltage requirement | AC220V，1phase，50/60HZ,4KW |
Pneumatiuc pressure requirement | 0.6Mpa，160L/min |
Size | 1252*1859*1735mm |
Weight | 770 KG |
Configured dust collector | TS300L |

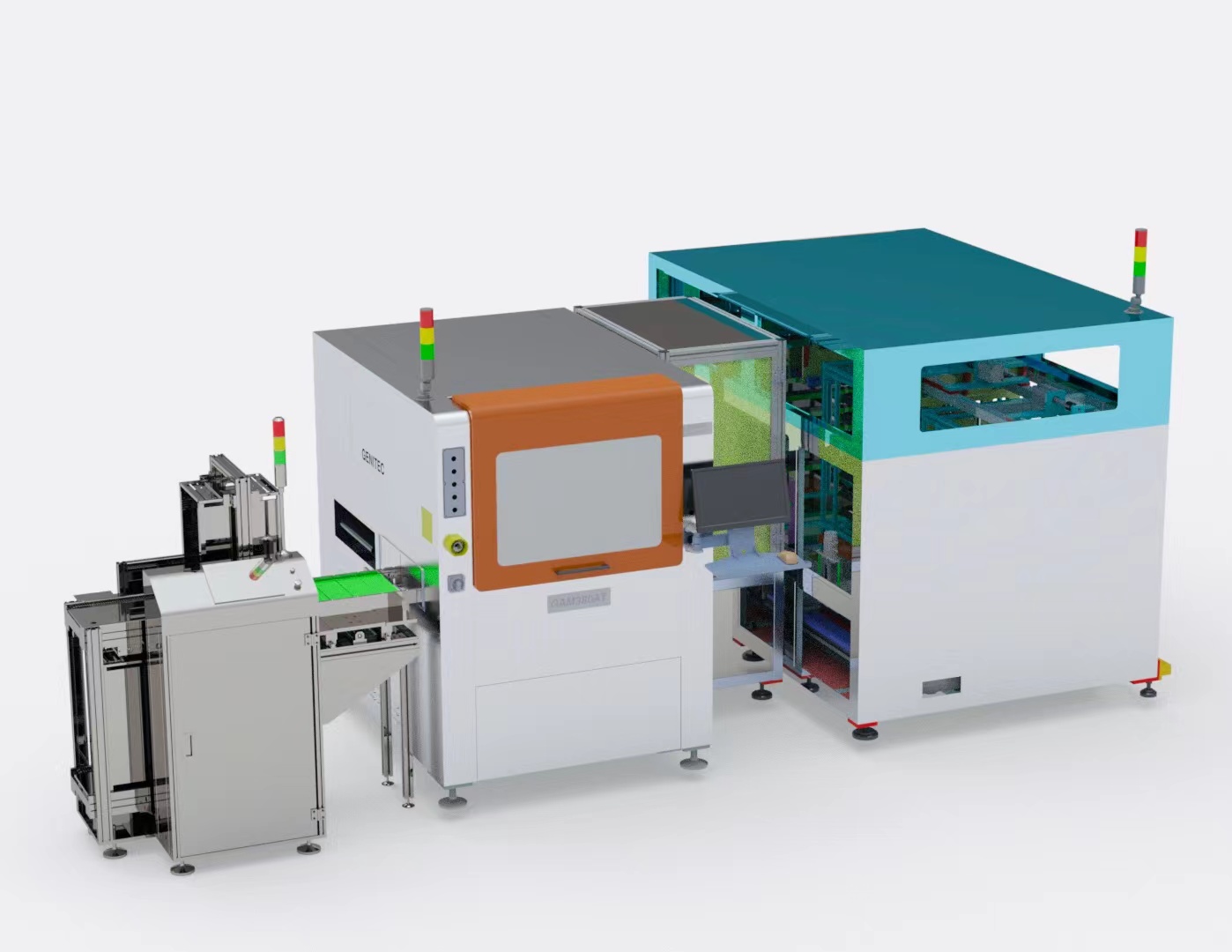

GAM380AT, a fully automatic PCB splitter without jigs, is a perfect and flexible docking case for front-end and back-end automation
