PCB milling cutter board splitter types, what are the types of gong board machines?

1. Simple desktop milling cutter board splitter

Cutting size: X300*Y220mm

The simple small desktop board splitter ZM100 can be placed on any table and can work after power on.

It only has a single work surface, which is suitable for low budget and small batch stamp hole PCB circuit board cutting.

2. Single workbench milling cutter board splitter

Cutting size: 350*300mm

GAM310A equipment width does not exceed 1 meter, and occupies a small area. It is more advanced than the first type, and also has a single workbench. The specific configuration needs to be based on the configuration table provided by each manufacturer.

3. Offline milling cutter board splitter

Cutting size: 450*500mm

GAM320A double workbench, generally has CCD vision system,

4. Online milling cutter board splitter

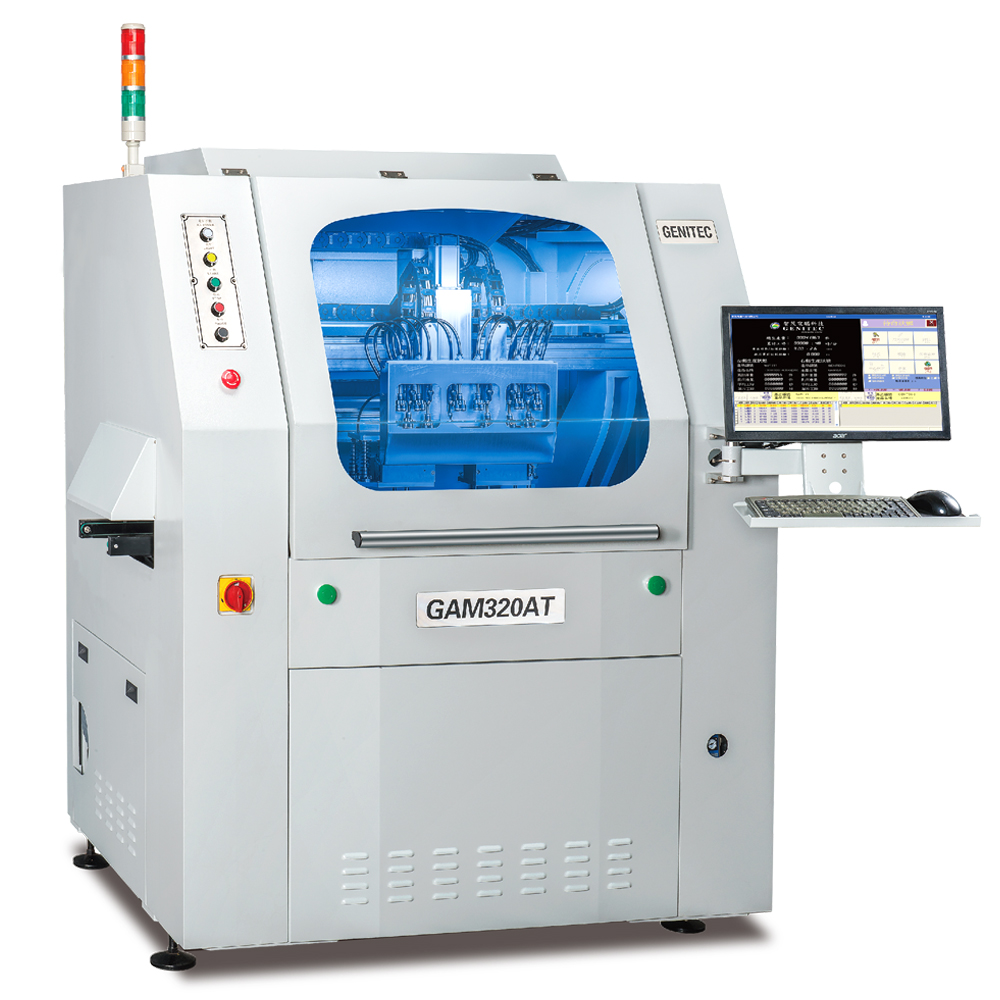

Online milling cutter board splitter is generally suitable for SMT whole line equipment production, connecting front and back end equipment, without manual labor, to achieve whole line automatic production. As shown in the figure GAM320AT board splitter

5. Jigless milling cutter splitter

The first four types require custom jigs or universal jigs to fix the PCB board before cutting. Jigless milling cutter splitter does not require this because it uses a fixture to hold the PCB board GAM380AT

6. Dual milling cutter board splitter

Offline + online board splitters have achieved dual milling cutter cutting at the same time, independent cutting or cutting the same path. The production capacity is twice as fast as that of a single milling cutter spindle. Model GAM330AD

7. Milling cutter + cutting machine

Some PCB circuit boards are designed with V-cut and stamp hole technology, which requires a milling cutter + cutting machine with two knives in one to achieve simultaneous cutting.

The above 7 types are the 7 common types of milling cutter board splitters on the market. They are also the 7 types of board splitters developed and produced by Zhimao Company. They are widely used in the market. This time, no special process customized milling cutter board splitters are displayed. The above 7 types are more popular, with prices ranging from low to high, and performance configurations also ranging from low to high. There is always a category that suits your budget and requirements.

If you need to evaluate the milling cutter board splitter equipment, you can contact us at any time and provide you with a free PCBA circuit board slitting solution.
