Small aluminum substrate PCB splitter ZM30-L, simple double-blade PCB splitter can cut infinitely long multi-connected boards

Small aluminum substrate PCB depaneling machine ZM30-L

seprays has been focusing on the research and development and production of PCB depaneling machines for more than 30 years, providing free PCB depaneling solutions

Can cut unlimited length PCB boards

Fast speed and high production capacity

Online consultation

+86-0769-82855018

Introduce Parameter Case After Sales

Introduce

Aluminum substrate double blade splitter

Adopting the latest lightweight design of knife-type, micro shear stress cutting stroke, suitable for cutting PCB circuit boards with V-grooves.

The product moves along the guide plate, the lower circular knife rotates actively, and the upper circular knife rotates passively.

The shear stress is reduced to a minimum, suitable for cutting long strip substrates.

The tool is made of high-speed steel with precision grinding, which can be repeatedly ground and applied.

Parameter

project	ZM30-L
Machine Specifications	380x290x380mm
Length of split board	No restrictions
Board separation speed	0-400mm/s
Thickness of the split board	0.8-3.5mm
Equipment voltage	220VAC/100VAC
Equipment weight	40kg

Case

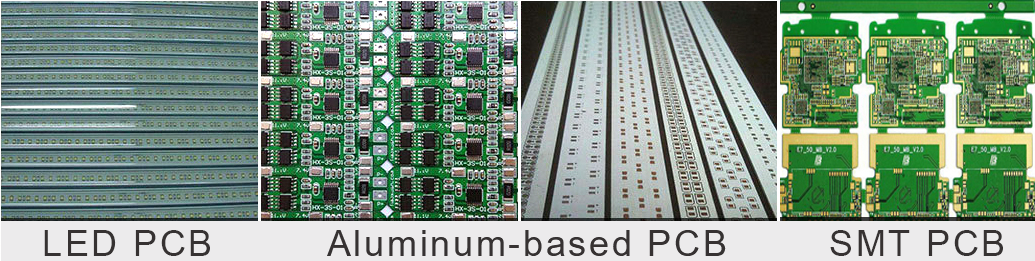

Applicable to all kinds of PCB circuit boards with V grooves, aluminum substrates, LED circuit boards, LED light strips, etc.

Mainly used in electronic industries such as LED, SMT, mobile phones, toys, and various industries using circuit boards.


After Sales

Exclusive Services

Within 10 minutes, provide feedback to users regarding various difficult issues encountered while using the device, and establish a 1V1 exclusive after-sales service group for users.

Remote service

Provide users with a 7 * 24H hotline; Based on the feedback of the fault information, analyze and locate the fault through remote telephone support, remote login, and other methods, and solve it.

Field service

Arrive at the work site within 8 hours and solve the problem within 1 working day. 2-4 days of equipment safety operation and application training. In case of breach of contract, it shall be handled in accordance with the contract provisions.

Service Locations

We have sales and service support in 9 cities domestically and 28 countries and regions overseas, responding to customers' current and future needs in a timely manner.

Benchmark service

Follow up call for each attendance; Provide video tutorials and phone guidance for accessory replacement and equipment maintenance; Free follow-up month in December every year. Continuously collecting user suggestions, continuously updating and iterating software to improve user production quality and efficiency, and maintaining it for life.
